1.8-Ton Compact Diesel Mini Excavator with Pilot Control System
KAISAN 1.8-Ton Mini Excavator
This new 1.8-ton mini excavator mirrors the reliable design and performance of the Yanmar SV17 model. Engineered for rental fleets and excavating contractors, it delivers versatile capability in confined spaces.
Key Features:
Premium Hydraulics: Equipped with a high-efficiency Hengli variable piston pump and load-sensing valve for strong, responsive performance.
Smooth Mobility: Dual piston drive motors provide balanced and stable travel on uneven terrain.
Zero Tail Swing: Allows safe, 360° rotation in tight areas near walls or obstacles.
Enhanced Stability: A rigid, one-piece chassis lowers the center of gravity for secure operation.
Operational Comfort & Versatility:

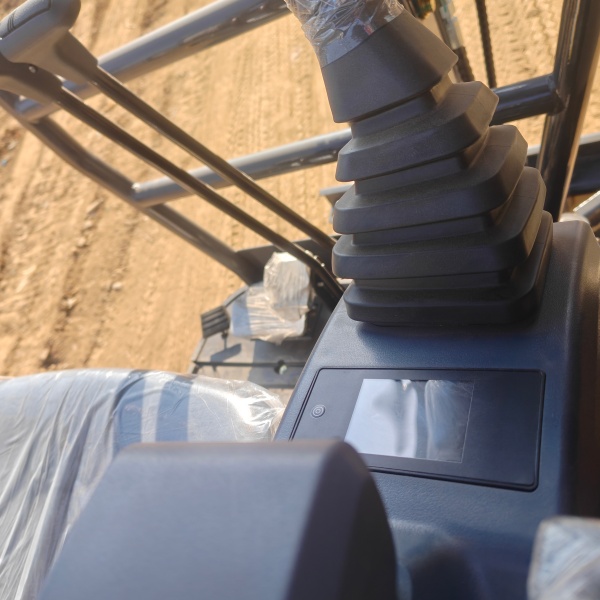

Precise Control: Intuitive joysticks enable accurate and fluid machine movements.
Ergonomic Design: A comfortable seat reduces operator fatigue during long shifts.
Flexible Options: Available with a swing boom, retractable undercarriage, and enclosed cab with fan.
Wide Compatibility: Supports various attachments including augers, breakers, quick couplers, rakes, and grapples for diverse tasks.

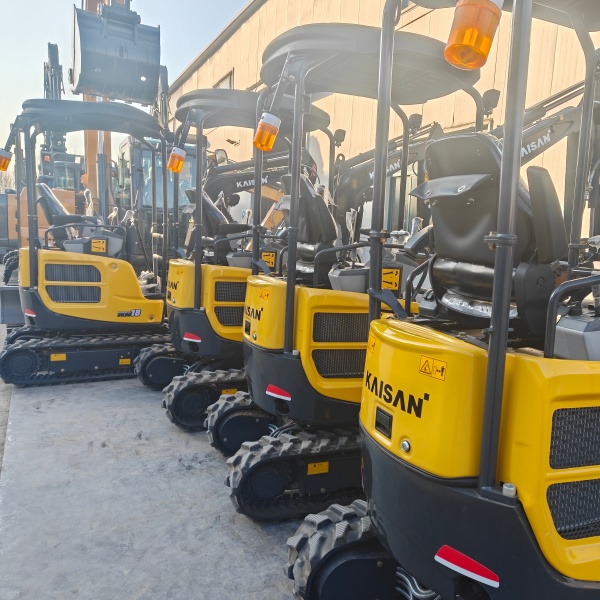

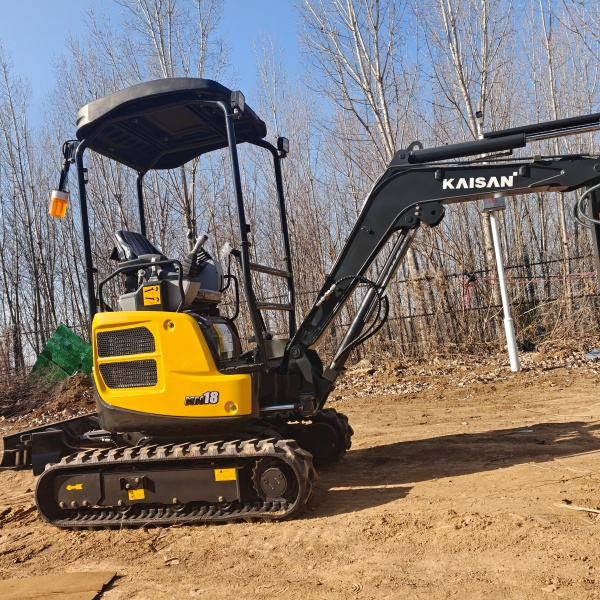

KAISAN KN18 | 1.8-Ton Compact Crawler Excavator
The KAISAN KN18 is a 1.8-ton compact excavator engineered for power and agility in confined spaces. It is powered by a reliable Yanmar 3TNV70 diesel engine (10.3 kW) and an efficient load-sensing hydraulic system (61.6 L/min at 24.5 MPa), featuring large-capacity fuel and hydraulic tanks for extended operation.
Key Features:
Zero Tail Swing: Allows safe, full rotation in tight areas.
Robust Monoblock Chassis: Provides superior stability and durability.
Precise Hydraulic Control: Variable piston pump with pilot joystick ensures smooth, accurate operation.
Compact Design: Dimensions of 3460 mm (L) x 950–1280 mm (W) x 2370 mm (H) ensure easy access and transport.
Strong Digging Performance: Delivers a digging depth of 2200 mm and a dumping height of 2630 mm.
Versatility & Applications: Offers optional swing boom, retractable undercarriage, and an enclosed cab. Compatible with augers, breakers, rakes, and grapples, making it ideal for urban construction, landscaping, utilities, and indoor demolition where minimal ground disturbance is essential.
Specification
Operating Weight | 1800kg |
Digging bucket capacity | 0.045cbm/120kg |
Digging bucket width | 350mm, can add narrow bucket is 200mm |
Engine | YANMAR |
Rated power | 10.3kw/2200r/min |
Displacement | 6.8ml/r |
Bore stroke | single cylinder, fan cool |
Main pump | HENGLI |
Valve | HENGLI |
Swing motor | EATON |
Traveling motor | EDDIE |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
OPERATING RANGE | |
Max. Digging depth | 2200 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 3690 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
Product Description
Accessories
Packaging & Shipping
Company Information
Our Services: End-to-End Partnership
We provide comprehensive support throughout your ownership journey, from initial inquiry to ongoing after-sales care.
Pre-Sale Services:
Consultation & Proposals: Tailored equipment recommendations aligned with your budget and project goals.
Customized Solutions: Machinery adapted to your specific project size and technical requirements.
Project Planning: Professional guidance on site layout and cost-effective investment strategies.
After-Sales Support:
Global Technical Assistance: On-site service in China and 24/7 remote support worldwide, with overseas technician dispatch.
Comprehensive Warranty: Coverage for manufacturing defects, including free replacement of faulty components.
Extended Service Plans: Flexible maintenance agreements to ensure continued support.
Performance Sustainability: Operator training and regular service reviews to maintain equipment efficiency and satisfaction.
Q: What are its primary applications?
A: Ideal for urban construction, landscaping, utility work, and indoor demolition where space is limited but robust performance is required.
Q: What engine and hydraulic system does it use?
A:Powered by a Yanmar 3TNV70 diesel engine (10.3 kW) with an efficient load-sensing hydraulic system (61.6 L/min) for responsive operation.
Q: What is the benefit of its zero-tail-swing design?
A: It allows the upper structure to rotate 360° without overhang, enabling safe work in extremely confined spaces near walls or obstacles.
Q: How does it ensure stability?
A: The rigid, one-piece chassis provides a low center of gravity, enhancing balance and durability during operation.
Q: What optional configurations are available?
A: Options include a swing boom, retractable undercarriage, and an enclosed cabin with a fan for different job site conditions.
