1.8 ton small excavator for earthwork transformation and construction projects
KAISAN Mini Excavator KN18
The KAISAN KN18 is a 1.8-ton mini excavator powered by a Yanmar 3TNV70 engine (10.3 KW). It features a hydraulic system with 24.5 MPa pressure and 61.6 L/min flow, supporting a standard backhoe and 0.045 m³ bucket.
With an adjustable chassis (950–1280mm) and low ground pressure (30 kPa), it offers high maneuverability and stability. Key performance specs include a 2200mm digging depth, 2630mm dumping height, dual travel speeds (2.2/4.2 km/h), and 10 rpm swing. Suitable for landscaping, utilities, and construction, it is available with rubber or steel tracks.
KASAN KN18 Crawler Excavator
The KAISAN KN18 is a 1.8-ton mini excavator designed for confined spaces and demanding small-scale tasks. It is manufactured by Shandong Kaisan Machinery Co., Ltd.

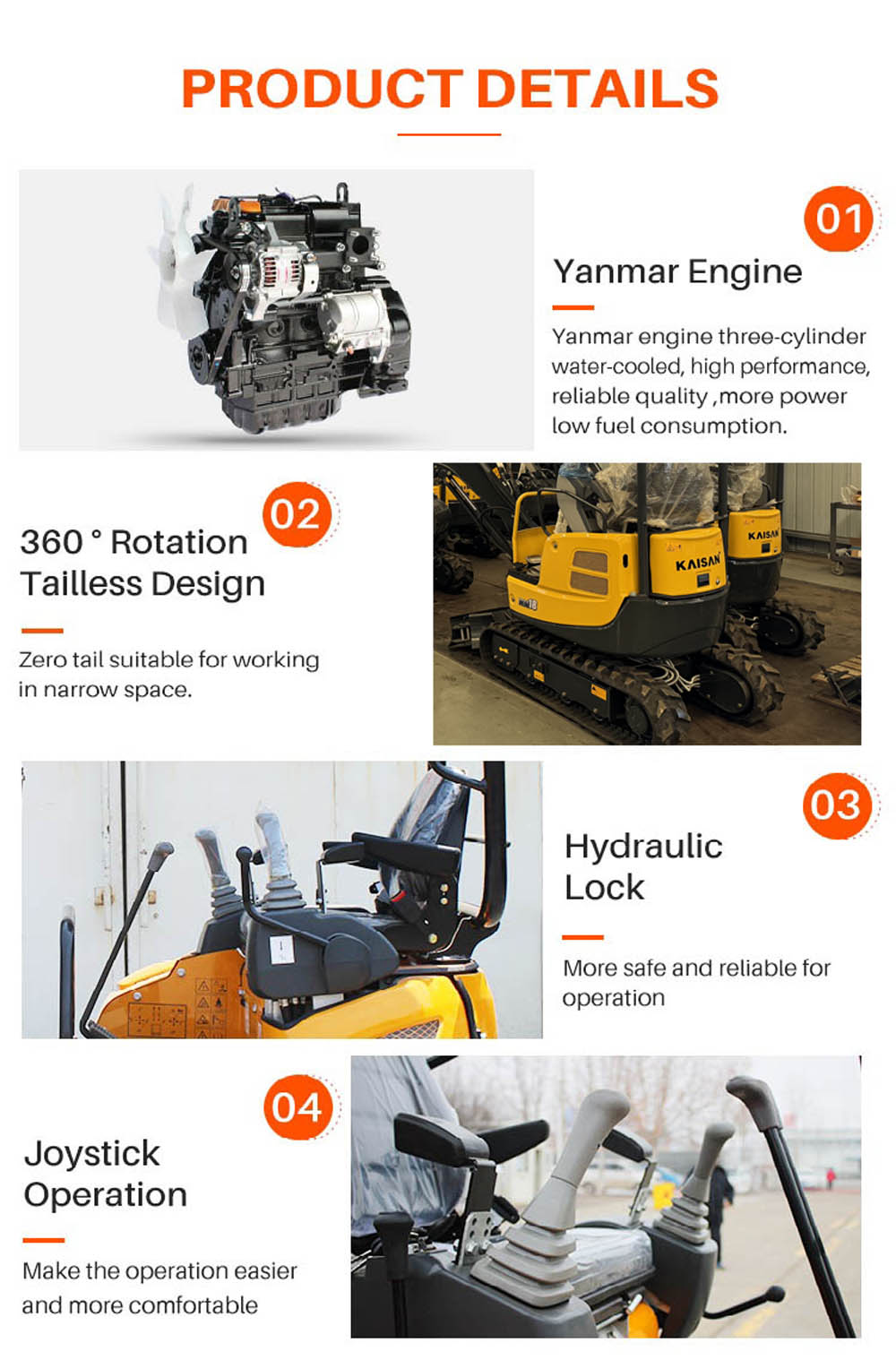

Power & Performance:
Equipped with a Yanmar 3TNV70 diesel engine (10.3 KW / 13.8 HP) and a hydraulic system delivering 61.6 L/min at 24.5 MPa. Includes a standard 0.045 m³ bucket.
Key Features:
Compact size: 3460mm (L), adjustable width 950–1280mm (W), 2370mm (H)
Max. digging depth: 2200mm; max. dumping height: 2630mm
Dual travel speeds (2.2/4.2 km/h), 10 rpm swing, and 55° gradeability
Optional rubber or steel tracks (230mm width) with low ground pressure (30 kPa)
Applications:
Ideal for excavation, landscaping, and utility projects requiring agility and power.
Specification
Operating Weight | 1800kg |
Digging bucket capacity | 0.045cbm/120kg |
Digging bucket width | 350mm, can add narrow bucket is 200mm |
Engine | YANMAR |
Rated power | 10.3kw/2200r/min |
Displacement | 6.8ml/r |
Bore stroke | single cylinder, fan cool |
Main pump | HENGLI |
Valve | HENGLI |
Swing motor | EATON |
Traveling motor | EDDIE |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
OPERATING RANGE | |
Max. Digging depth | 2200 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 3690 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
Product Description

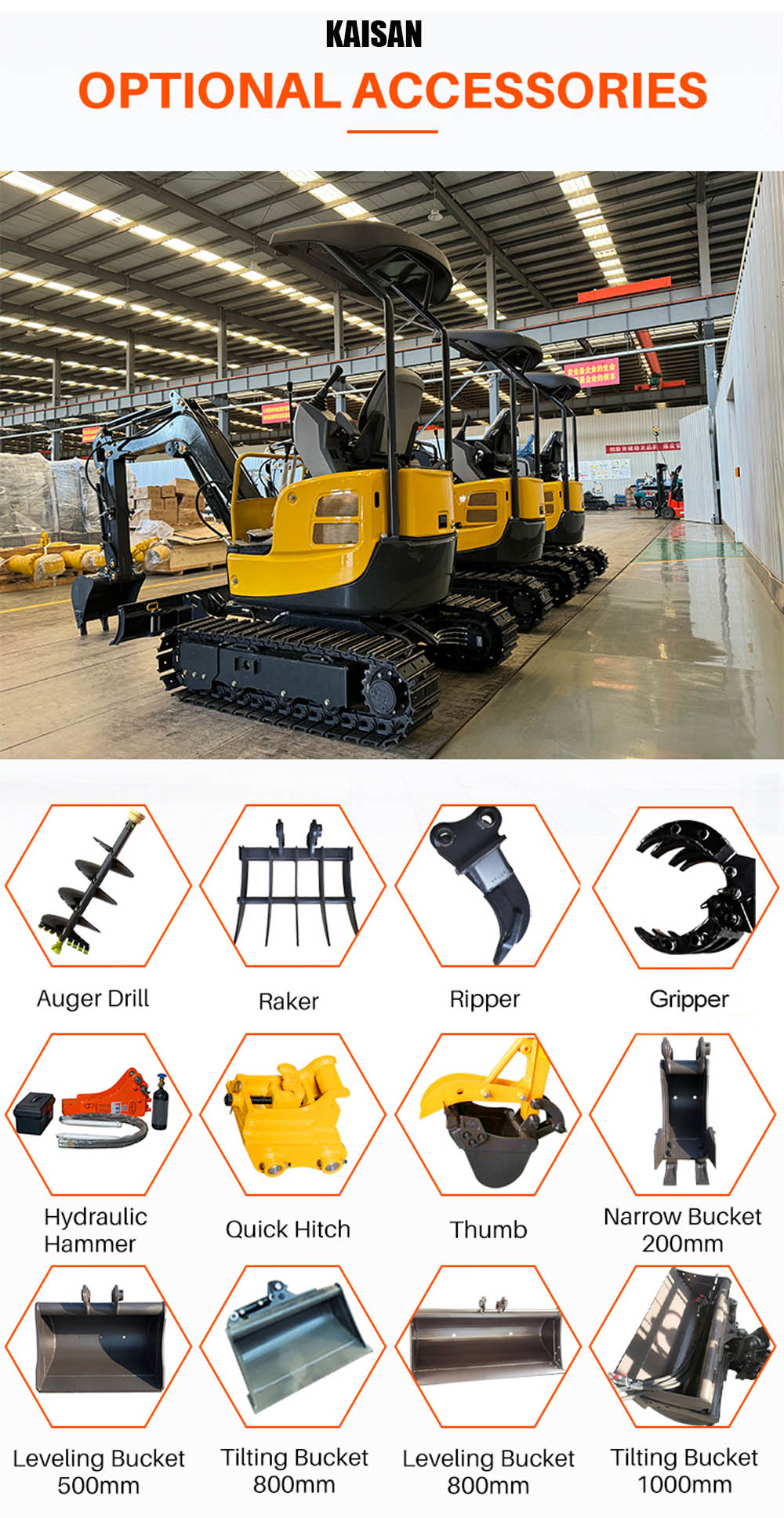

Accessories

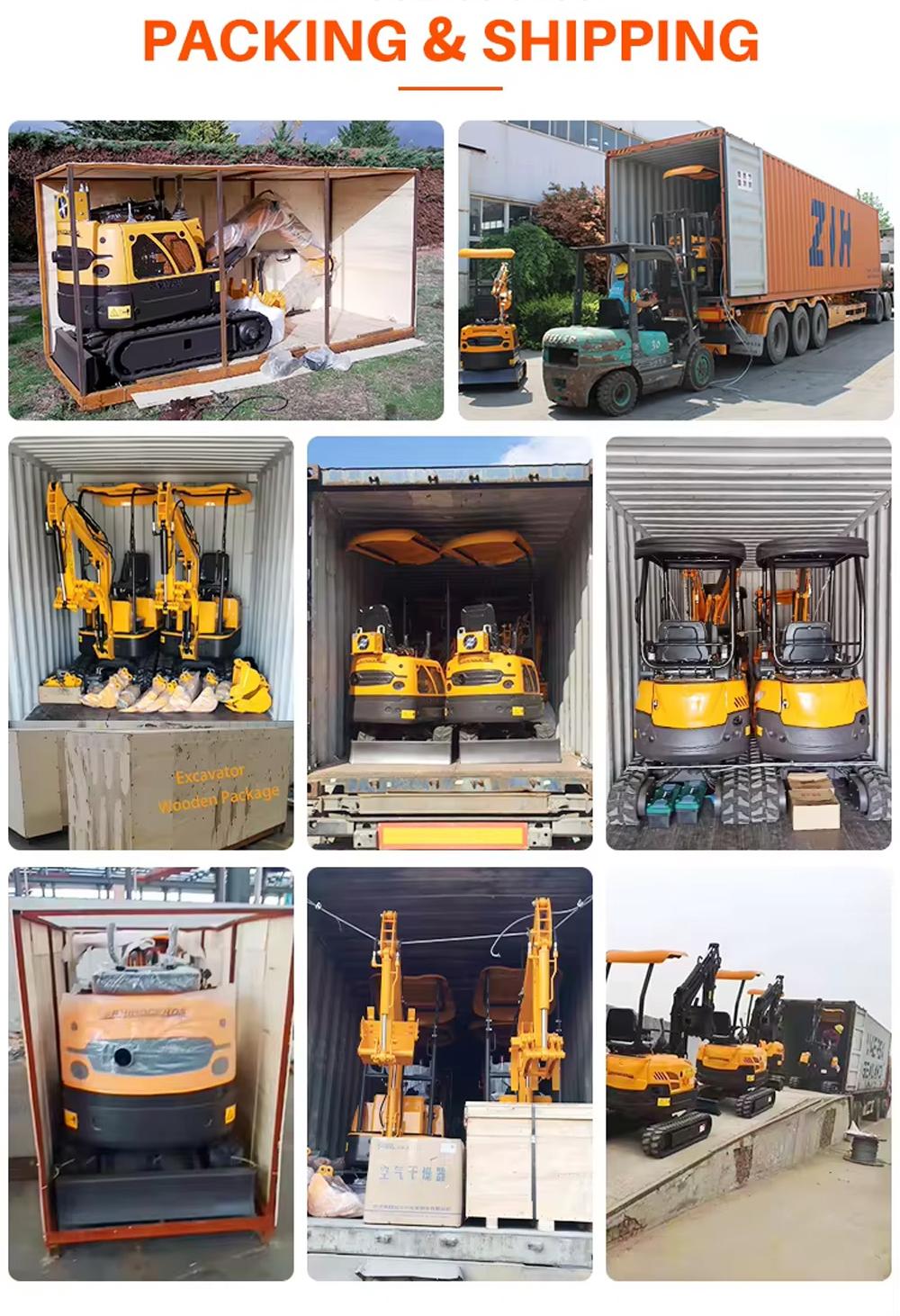

Packaging & Shipping

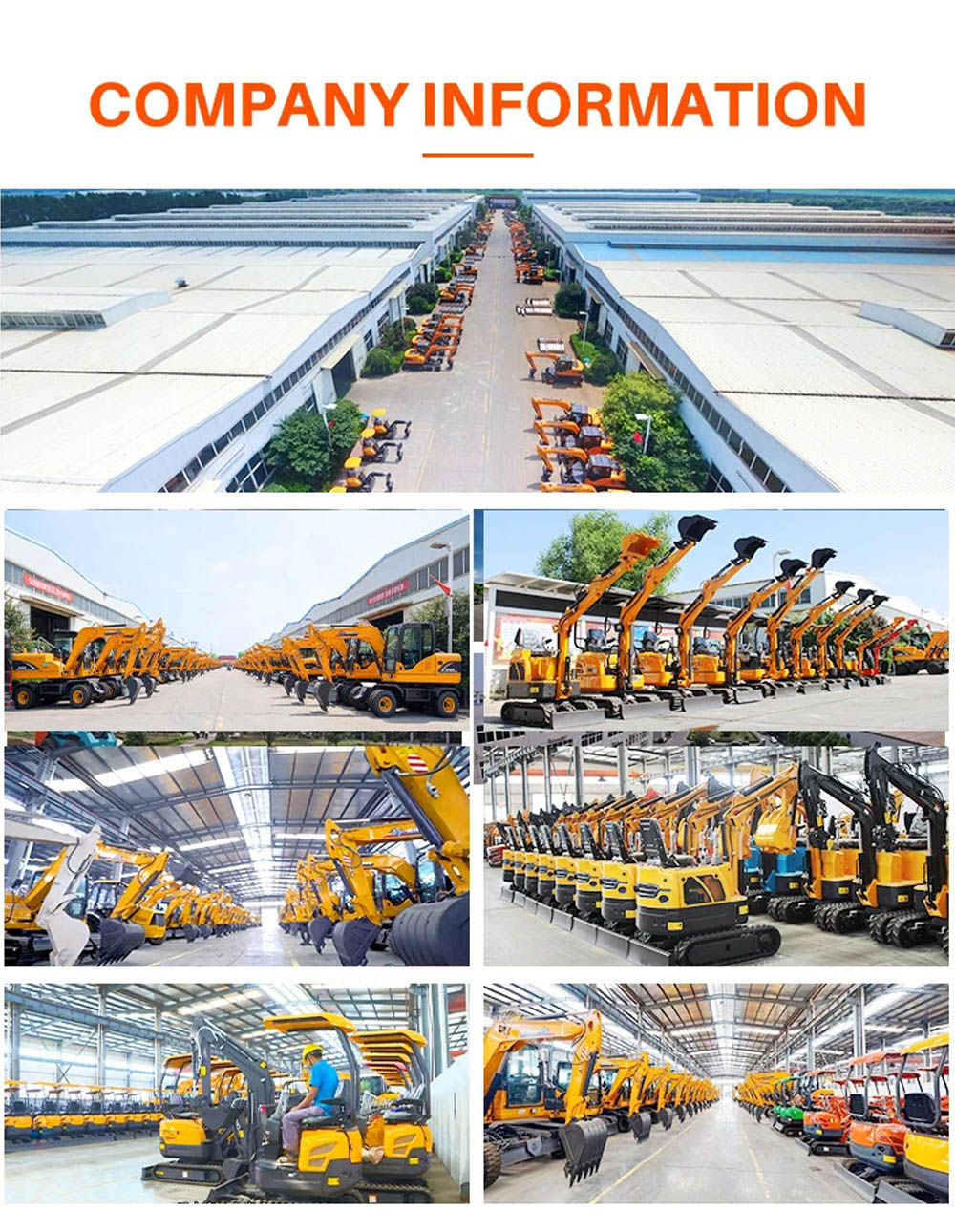

Company Information
Founded in 1995, we specialize in manufacturing CE and ISO-certified wheeled and crawler excavators (0.8–12 tons) along with mini dumpers and forklifts.
Our equipment—designed for durability, performance, and use in confined spaces—serves clients in over 50 countries, supported by a strong distribution network across Europe, Australia,
New Zealand, and South Asia. With decades of expertise, we deliver innovative and reliable machinery for long-term value.
Our Service: End-to-End Customer Support
We provide comprehensive service from pre-sale consultation to continuous after-sales support, all with a strong customer focus.
Pre-Sale Services:
Personalized consultation and cost-effective equipment recommendations
Customized solutions based on your project scale and technical needs
Expert guidance in site planning and budget optimization
After-Sales Support:
Technical support: on-site help in China, 24/7 remote support globally, and overseas technician dispatch when needed
Full warranty covering manufacturing defects with free part replacements
Flexible service contracts for post-warranty continuous support
Regular training and feedback review to maintain high service standards
FAQ
Q: Manufacturer or trading company?
A: We are the direct manufacturer of crawler excavators and related machinery.
Q: Minimum order quantity (MOQ)?
A: 1 unit – accommodating both trial orders and bulk purchases.
Q: Production lead time?
A: 7-10 days for standard models; 15-25 days for custom configurations (after advance payment).
Q: Accepted payment methods?
A: T/T (Bank Transfer) or L/C (Letter of Credit), with a 30% deposit to start production.
Q: Warranty coverage?
A: 1 year or 2,000 operational hours (whichever occurs first) for manufacturing defects. Extended warranties available post-expiry.
