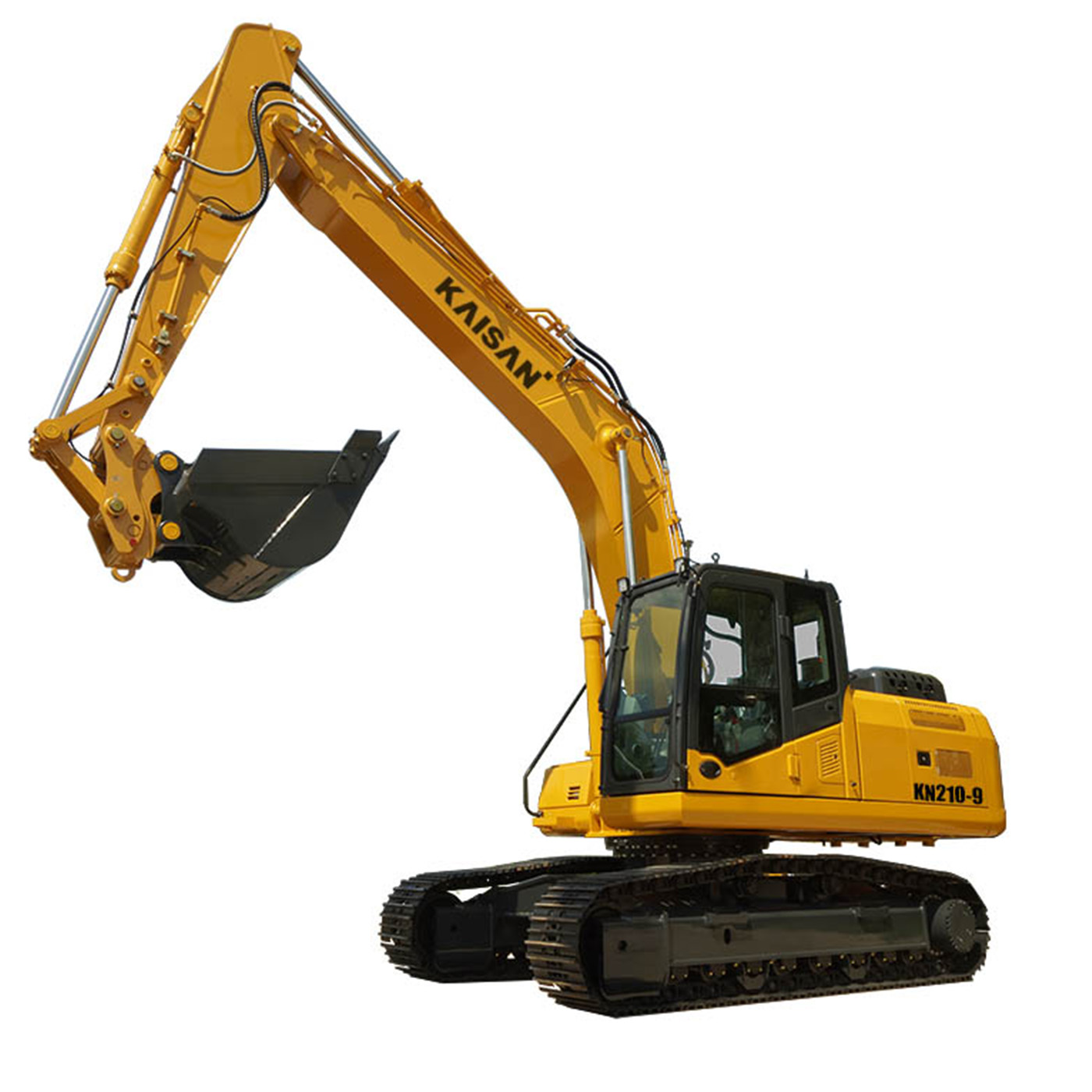

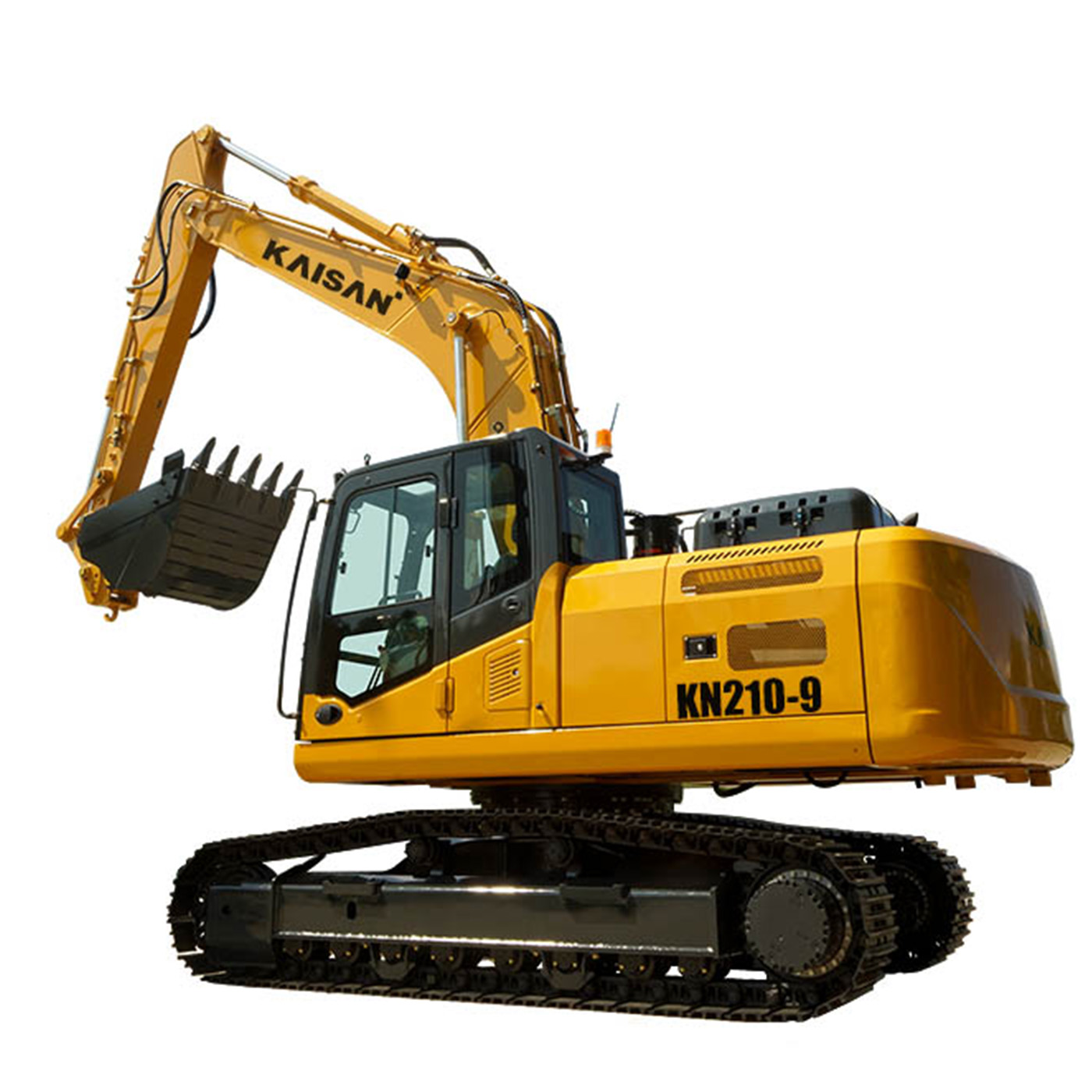

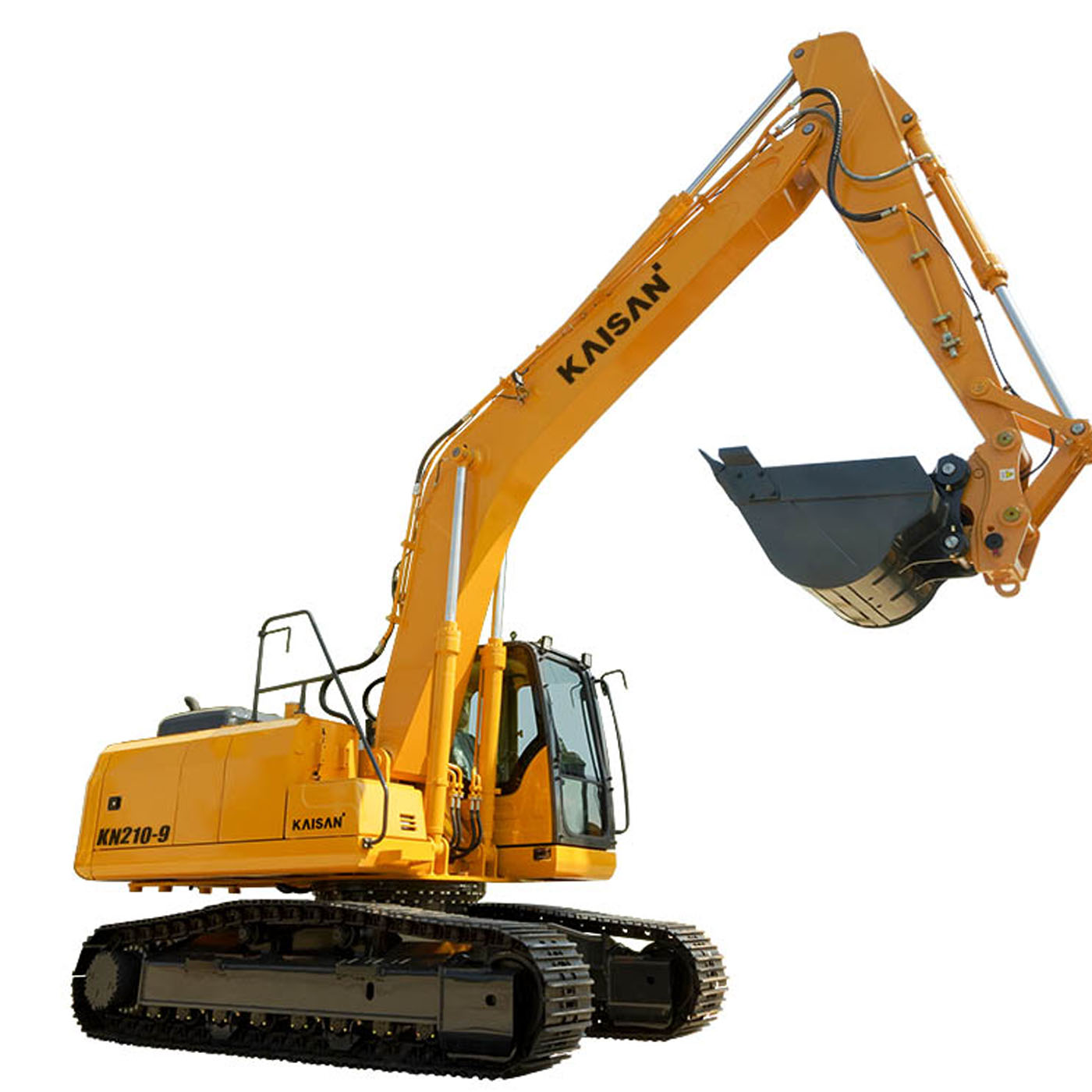

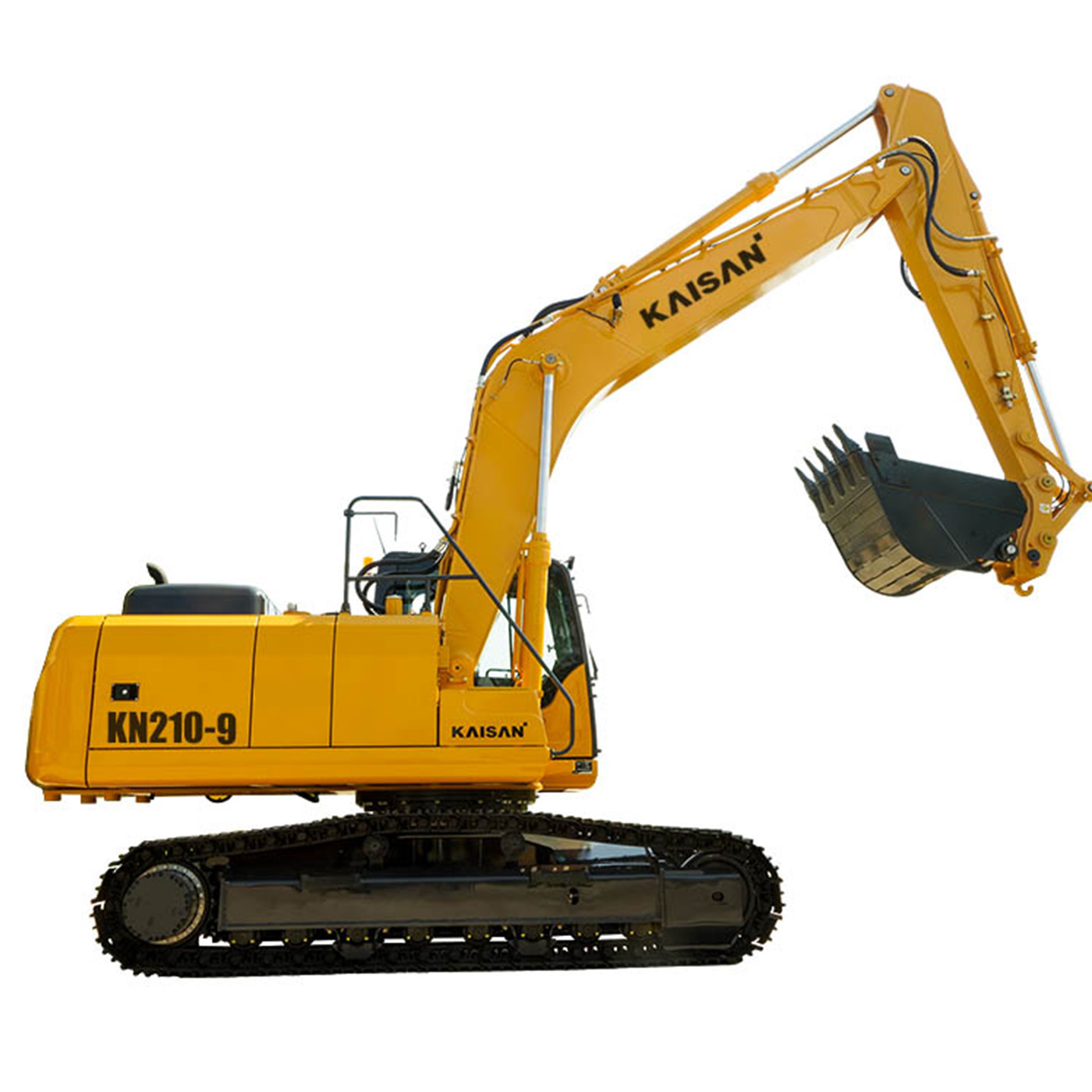

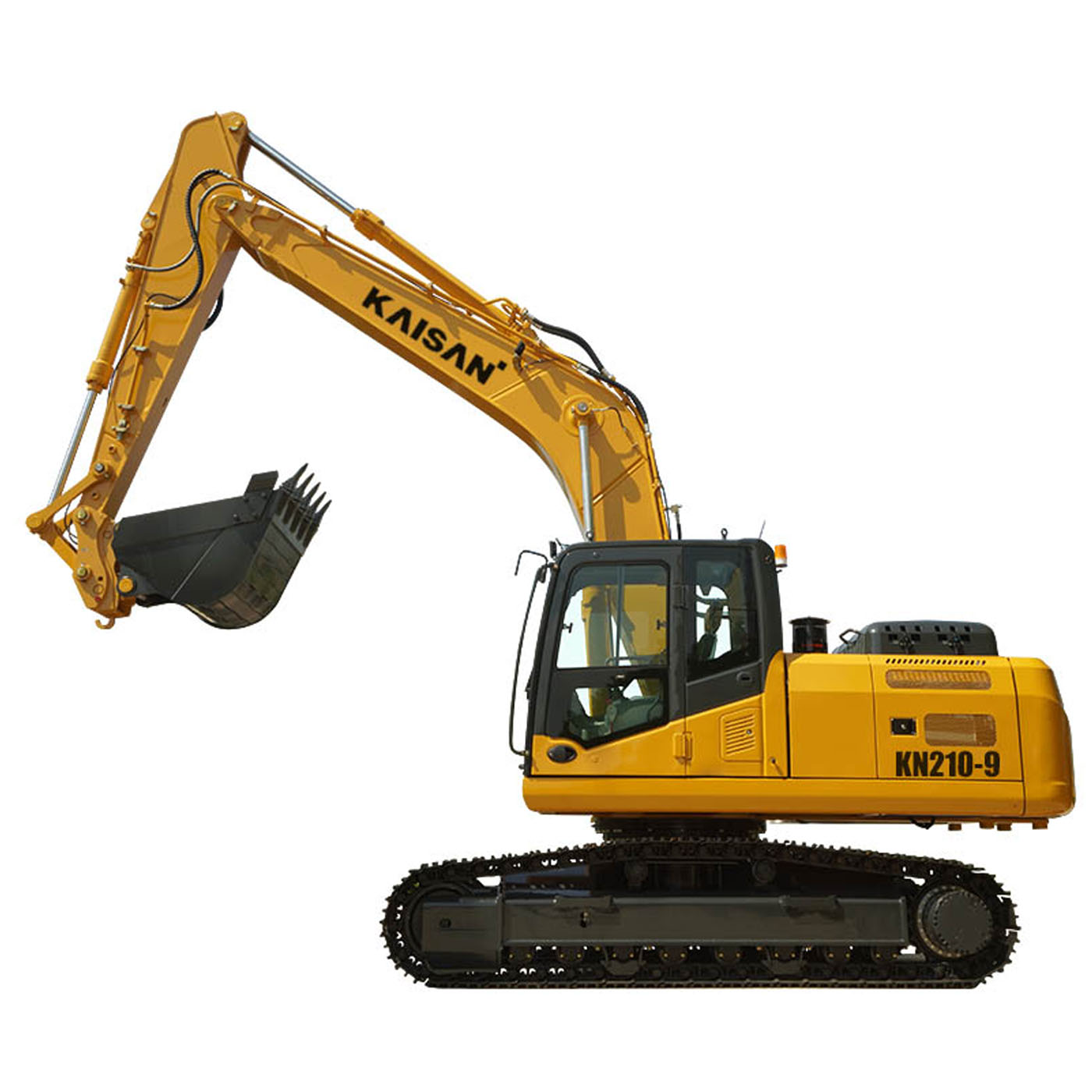

Efficient 22 Ton KN210-9 Excavator With Cummins Engine
KN210-9 Multi-Scenario Excavator
1) Efficient Earthmoving: Designed for productive material handling, the KN210-9 features a 1m³ bucket capacity, enabling significant load movement per cycle, supported by a strong 112kN bucket digging force for effective penetration and loading.
2) Robust Power & Reliability: At its heart lies a turbocharged Cummins 6BTAA5.9 diesel engine, delivering 133 kW of reliable power, ensuring strong performance and responsible operation.

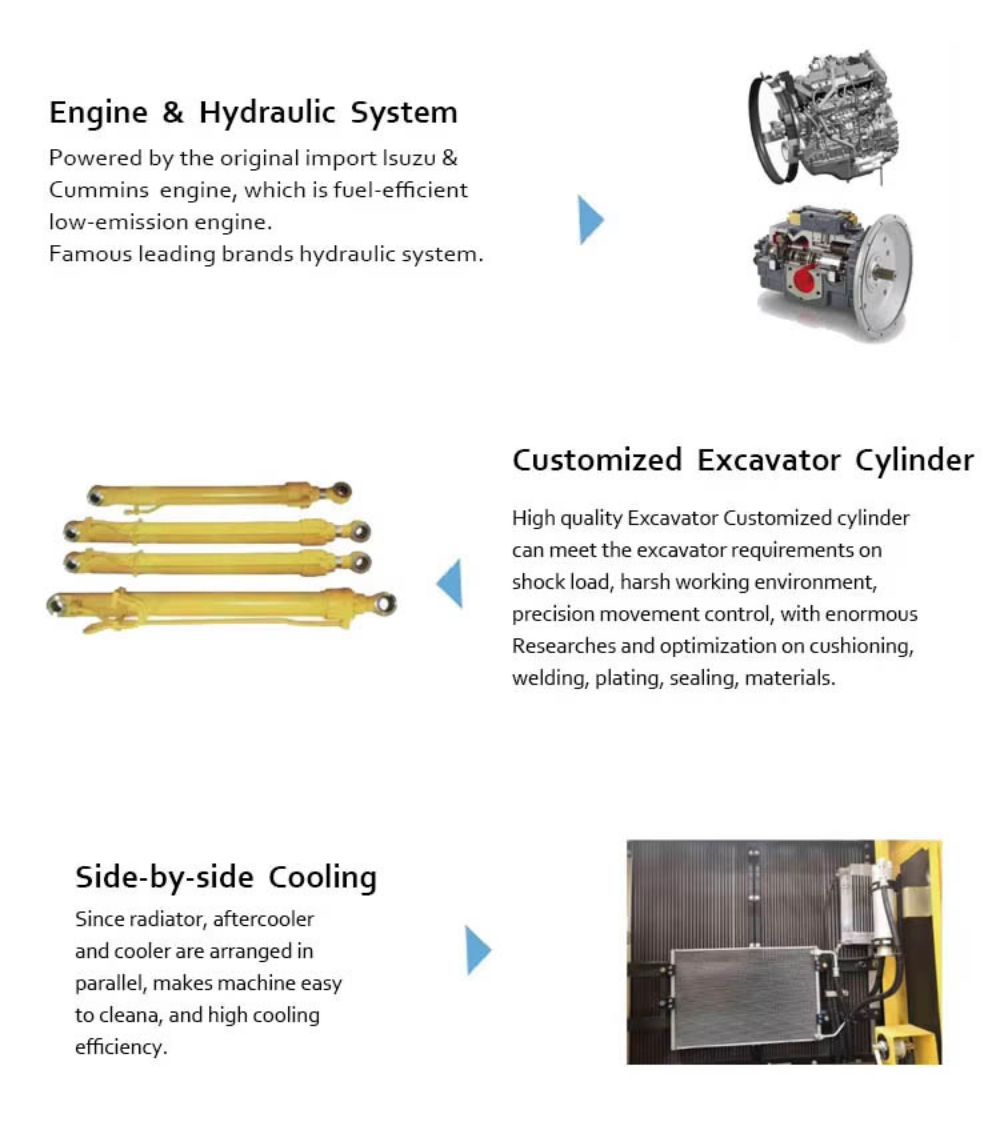

3) Advanced Hydraulic Control: The excavator utilizes a high-performance hydraulic system featuring twin main pumps delivering 430 L/min total flow and a precise EDDIE FSM130C control valve. This system translates into smooth, responsive operation for all digging, lifting, and swinging functions.

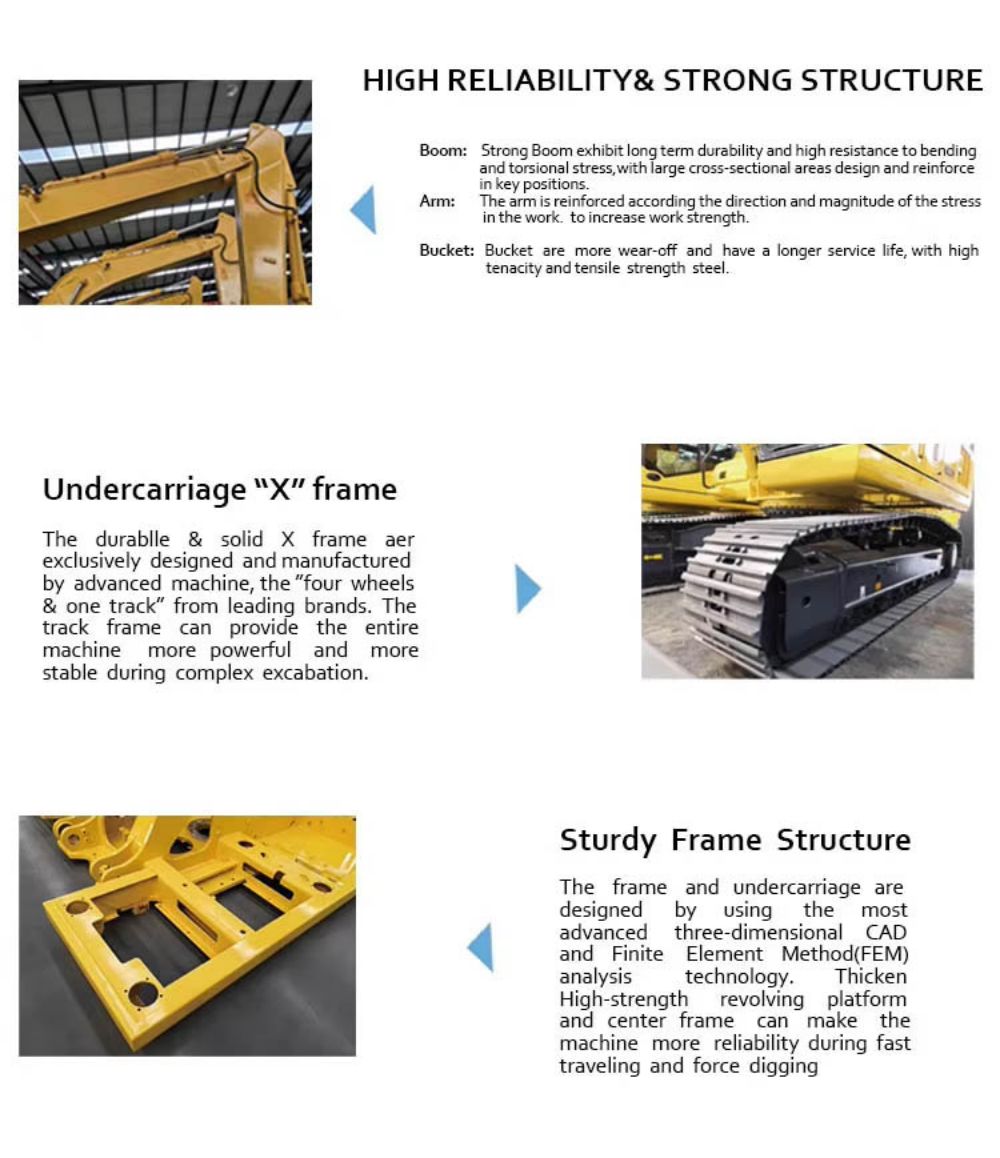

4) Superior Mobility & Stability: Equipped with a durable chassis and triple-tooth track system (600mm width), the KN210-9 achieves a low average grounding pressure of 46.5 kPa. This design provides exceptional traction and stability on diverse terrains, complemented by a significant 35° maximum climbing ability.
5) Optimized Performance Dimensions: Its balanced boom and arm lengths (5700mm and 2900mm respectively) facilitate a substantial maximum digging depth of 6515mm and a maximum dumping height of 6560mm, allowing it to tackle demanding excavation and loading tasks effectively.
6) Operational Maneuverability: The KN210-9 offers practical mobility with a travel speed of up to 5.2 km/h and responsive handling through its 11.5 r/min swing speed, enhancing job site efficiency.
KN210-9 Efficient mining machinery:
The KN210-9 excavator excels in efficiency and power, featuring a robust Cummins 6BTAA5.9 engine with 133kW output and turbocharged intake for reliable, fuel-saving operation. Its advanced hydraulic system, including high-pressure pumps and responsive control valves, delivers strong digging force up to 112kN and smooth handling. Designed for stability, the durable chassis with three-tooth tracks minimizes ground pressure to 46.5KPa, ensuring superior traction on challenging terrains. With a spacious 1m³ bucket, impressive 35° climbing ability, and swift 5.2km/h travel speed, it boosts productivity while meeting Euro II emission standards for eco-friendly performance.
Machine Weight | 21300kg |
Bucket capacity | 1cbm |
Engine | CUMMINS 6BTAA5.9 |
Rated power | 133 kw/2000r/min |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 9600x2780x3120 mm |
Wheelbase | 3445mm |
Total length of track | 4260mm |
Upper chassis ground clearance | 1065mm |
Counterweight turning radius | 2720mm |
Track width | 600 mm |
Track gauge | 2180 mm |
OPERATING RANGE | |
Max. Digging depth | 6515mm |
Max. Vertical digging depth | 5915mm |
Max. Digging height | 9275mm |
Max. Dumping height | 6560mm |
Max. Digging radius on ground | 9680mm |

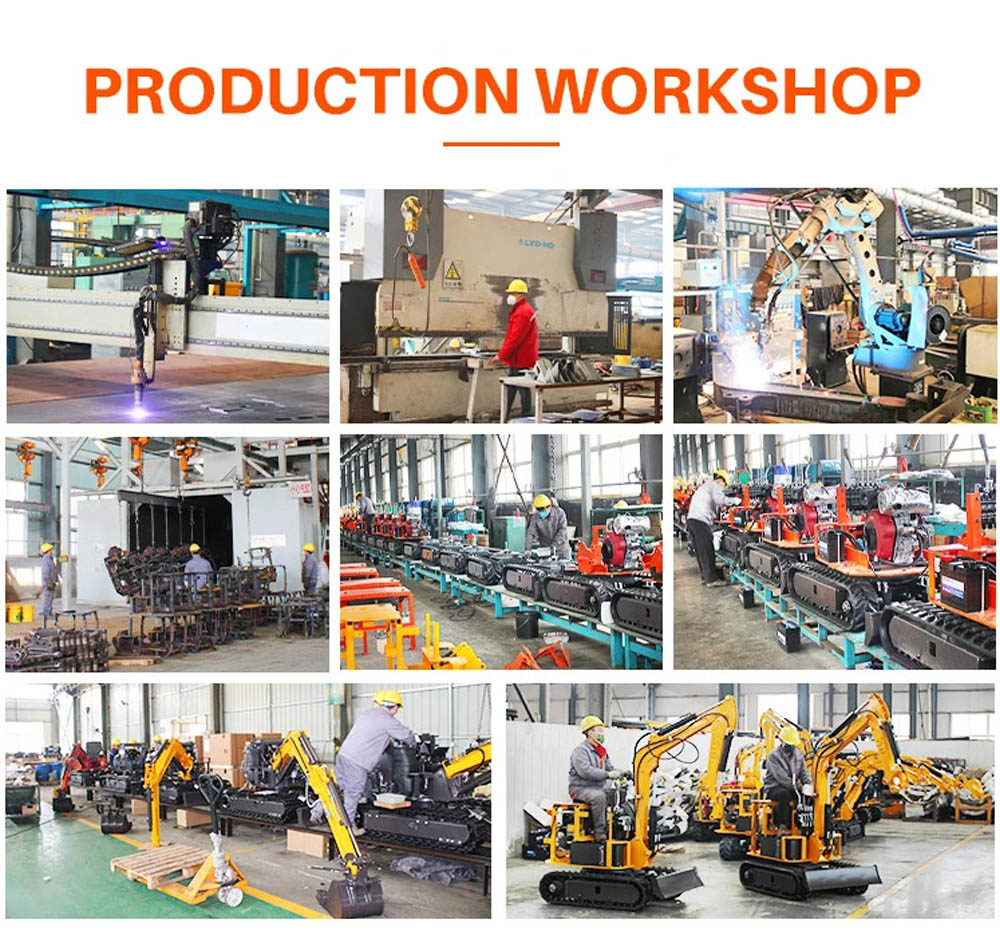

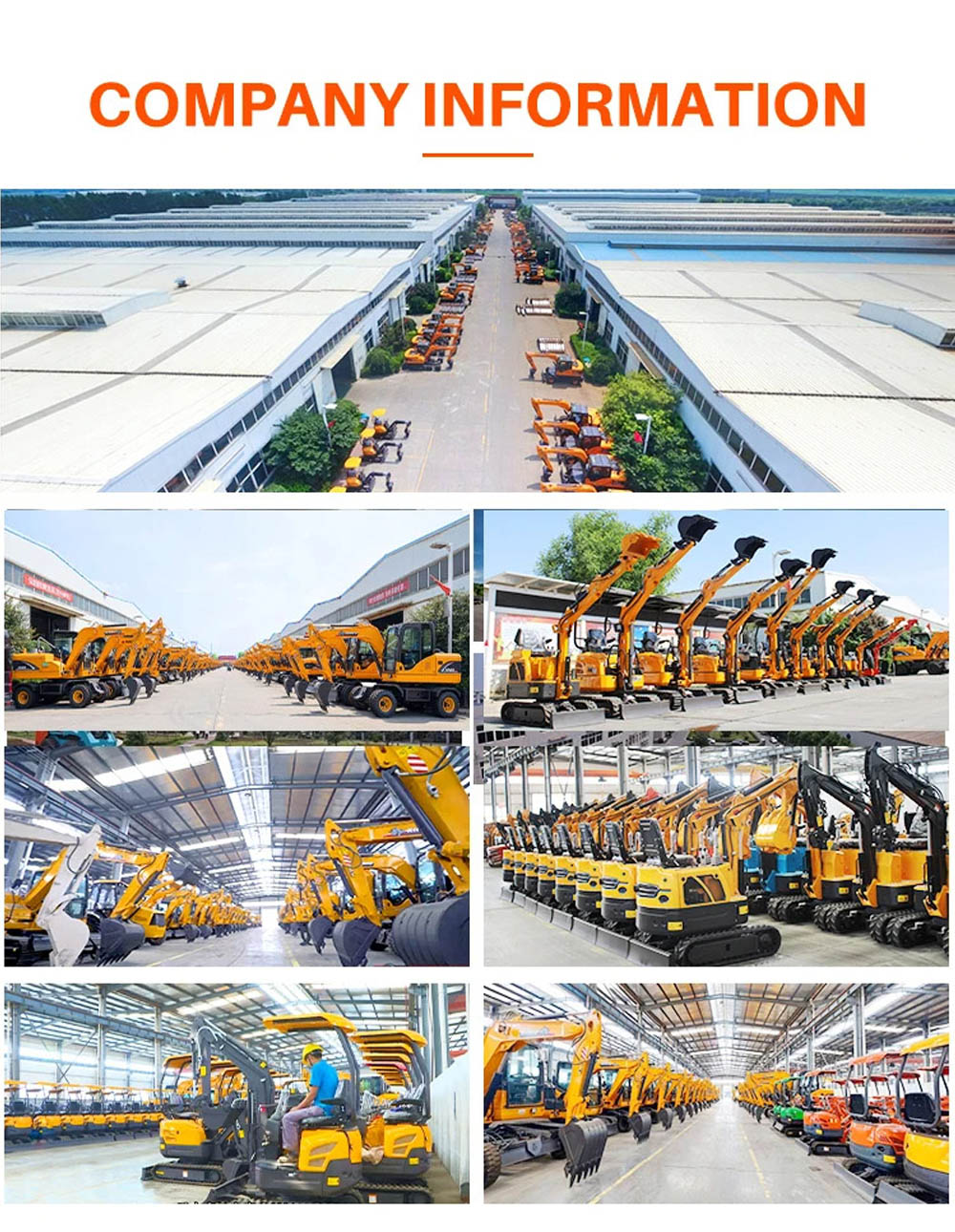

Since 1995, KAISAN factory has focused on producing wheeled excavators, crawler excavators, and mini dumpers, meeting stringent quality standards. Our wheeled excavator portfolio (5-12 tons) offers versatile solutions, while crawler models (0.8-12 tons) deliver exceptional durability and performance for challenging operations. Compact mini dumpers further enhance efficiency in material transport. With a global footprint spanning over 50 countries, our products are supported by representatives across Europe, Australia, New Zealand, South Asia, and other key regions.
More products:
Customer-Centric Focus: Dedicated to ensuring your complete satisfaction and a positive experience with every interaction and product.
Expert Pre-Sale Consultation: Contact us for valuable, industry-specific insights based on extensive sales and production expertise, fostering mutual advancement.
Tailored Machinery Selection: We assess your requirements to recommend optimal equipment, providing relevant samples and detailed suggestions aligned with your production scale and technical needs.
Responsive Sales Support: Receive enthusiastic, expert guidance on inquiries, machine value optimization, venue selection, and cost-saving strategies.
Comprehensive After-Sales:
Global Technical Support: Onsite service across China; 24/7 online support worldwide, plus arranged overseas technician visits for installation/maintenance.
Warranty Coverage: Free replacement for parts damaged under normal use during the warranty period.
Extended Service Contracts: Renew post-warranty for continued premium support.
Performance Monitoring: We actively evaluate staff service to enhance customer satisfaction.
Manufacturer or Trader?
We are the direct manufacturer.Customize mini dumpers?
Yes. We customize engine power, load capacity, dumping mechanisms, cabins, and attachments per your requirements.Minimum Order Quantity (MOQ)?
1 unit.Order lead time?
7-10 days or 15-25 days after receiving advance payment.Payment terms?
Bank transfer (TT) or Letter of Credit (L/C).Product warranty?
1 year or 2,000 hours, whichever comes first.
