KAISAN factory direct sales of 6-ton excavators YANMAR engines.
Robust and Efficient Powertrain
Equipped with a YANMAR 4TNV94L engine delivering 36.3kW at 2200r/min, providing reliable performance. Intelligent fuel management reduces consumption by approximately 15% compared to similar models, decreasing operational expenses.
Durable Structural Design
Boom and arm constructed from premium manganese steel, with reinforced welding at critical stress areas. This enhances carrying ability and increases component service life by more than 2000 working hours.
Accurate and Responsive Control
Full-hydraulic pilot-operated system ensures command execution within 0.1 seconds. Light-touch joysticks (3.5N) minimize operator strain and maintain precision within ±2cm.
Ergonomic Operator Environment
ROPS/FOPS-certified cabin offers 180° visibility, a suspended seat, rapid climate control, and interior noise levels below 72dB for improved comfort.
High-Performance Hydraulics
Dual-pump confluence technology delivers a maximum flow of 120L/min, enabling smooth combined movements and raising productivity by about 25%.

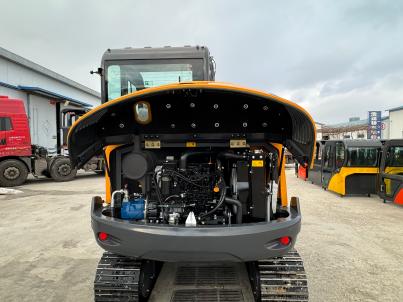

Convenient Service Access
Wide-opening hood and side panels allow easy reach to filters and fluid tanks. Maintenance intervals for key components are extended to 500 working hours, cutting non-operational time.
Enhanced Terrain Capability
Fitted with 16-inch reinforced rubber tracks and a 2.8㎡ ground contact area. Low ground pressure of 35kPa ensures stable performance on soft or uneven surfaces without subsidence.
Comprehensive Safety Features
ROPS/FOPS cabin withstands impacts up to 50kN. An emergency stop switch and rearview camera contribute to safer operation and protection of nearby personnel.

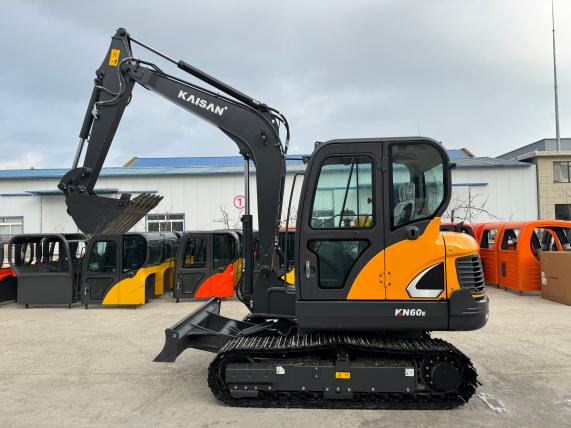

KAISAN KN60-E | 6-Ton Compact Crawler Excavator for Space-Restricted Operations
Optimized for Limited-Space Applications
The KAISAN KN60-E is a 6-ton compact crawler excavator from Shandong Kaisan Machinery, specifically engineered for productive and efficient work in confined areas across construction and agricultural sectors.
Key Performance and Dimensions
This model features a total weight of 5,500 kg, powered by a 36.3kW Yanmar 4TNV94L engine. It offers a bucket capacity of 0.21m³ and achieves a maximum digging depth of 3,808mm, maintaining a 70% gradeability for stable performance on slopes.
Superior Maneuverability and Traction
Designed for agility, the excavator attains a travel speed of 4.6 km/h and exerts a bucket digging force of 38.5 kN. Its compact profile (5,870mm length × 1,860mm width) combined with a low ground pressure of 33.4 kPa ensures secure operation in tight or delicate ground conditions.
Human-Centric Operation
The cabin is ergonomically configured to provide excellent visibility and minimize operator strain. This is complemented by a sensitive hydraulic system that delivers accurate handling and versatility in diverse worksites.
Comprehensive Equipment Portfolio and Customized Offerings
Our product range spans excavators from 0.8 to 12 tons, available in crawler, wheeled, and hybrid configurations. Built for long-term resilience, every unit can be fully adapted to meet specific operational requirements.
Outstanding Investment Advantage and Market Development Assistance
We ensure superior value with reliable, quality-verified equipment, supported by strong warranty terms. To expand your business reach, we offer free regional promotional resources and personalized branding options, such as custom color schemes and logo application.
Specification
Model | KN60E |
Engine Power | 36.3KW |
Engine Emission | EURO 5 / EPA Tier 4 |
Bucket Capacity | 0.21 CBM |
Traveling Speed | 2.9 - 4.6 KM/H |
Machine Weight | 5500KG |
Loading Container | 3 units / 40HQ |
Warranty | 1 Year |
Max Digging Height | 5800 mm |
Max Digging Depth | 3808 mm |
Max Digging Radius | 6033 mm |
Max Dumping Height | 4051 mm |
Packing & Shipping
Production Workshop
Established Manufacturing Excellence
Since 1995, we have specialized in creating robust construction equipment, offering a range including wheeled excavators (5-12T), crawler excavators (0.8-12T), and compact dumpers. All products are CE/ISO certified and built to perform in challenging conditions.
Worldwide Reach and Customized Engineering
Our machinery serves clients in over 50 countries, with significant presence in Europe, Australia, New Zealand, and South Asia. Guided by our internal engineering team, we uphold strict quality controls and provide adaptable, space-optimized solutions like multi-purpose mini dumpers to meet diverse operational needs.
Exhibition
Our Services Overview
Comprehensive Warranty and Support Pledge
We provide a standard 1-year/2000-hour manufacturer warranty, with options for extended coverage plans. Any faulty parts are replaced free of charge within the warranty term.
Dedicated Technical and Maintenance Assistance
Our support includes round-the-clock remote diagnostics, on-site technical aid both locally and overseas, and structured maintenance programs including regular equipment evaluations.
Tailored Efficiency Enhancements
We offer specialized optimization services such as hydraulic system fine-tuning, engine performance adjustments, and verification of attachment fitment and operational compatibility.
FAQ
Q: What are the key specifications of the KN60E?
A: The KN60E is a 6-ton class compact crawler excavator with an operating weight of 5500 kg. It is powered by a 36.4 kW Yanmar engine and has a bucket capacity of 0.18 CBM. Its maximum digging depth is 3808 mm.
Q: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 unit.
Q: What customization options are available?
A:You can customize the machine's logo and graphics, with a minimum order quantity of 6 units for such customizations
Q: What certificates does the machine have?
A: The machinery has CE and ISO certificates . The engine meets EURO V and EPA Tier 4 emission standards .
Q: What is the warranty policy?
A: The warranty is for 12 months after shipment or up to 2000 working hours, whichever occurs first.
