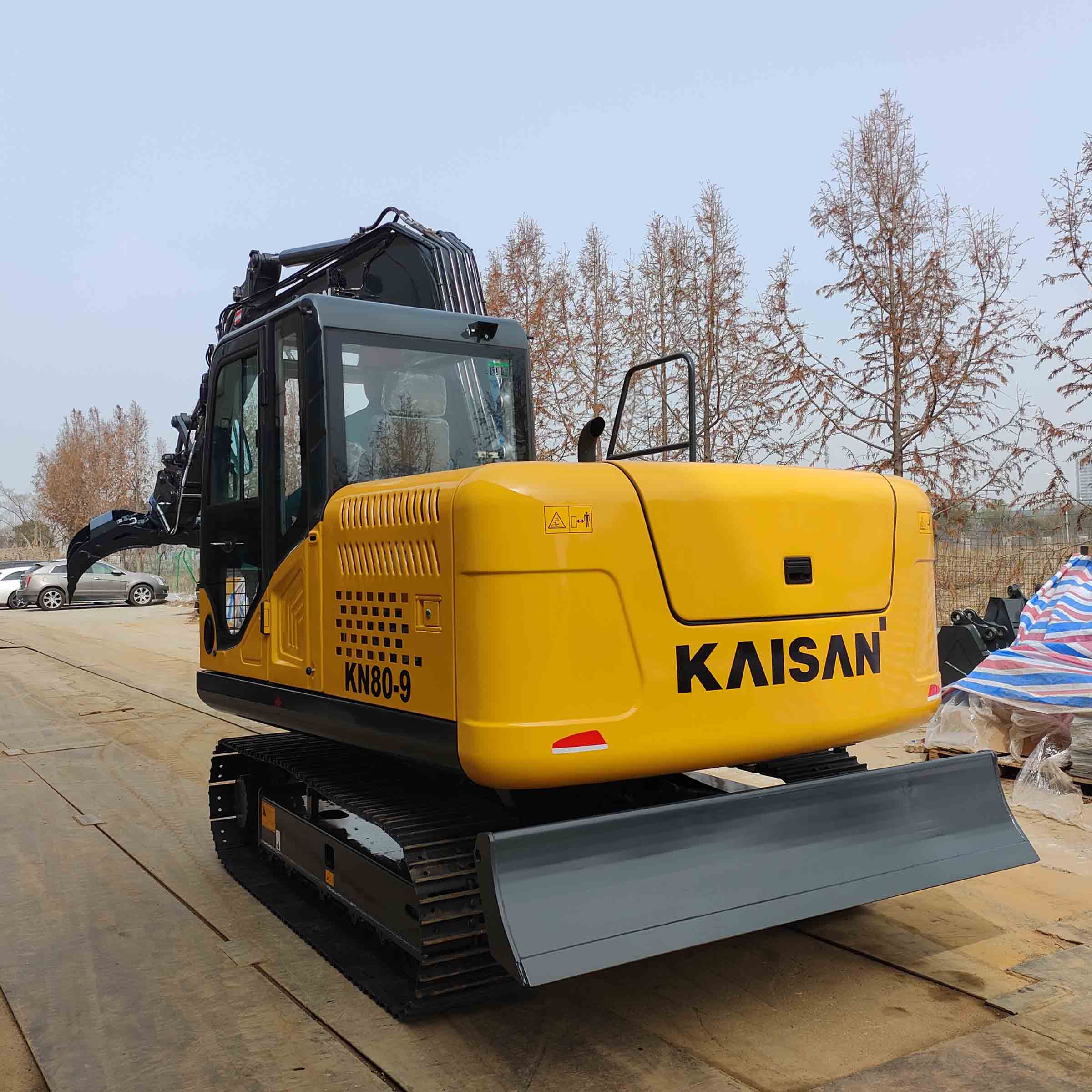

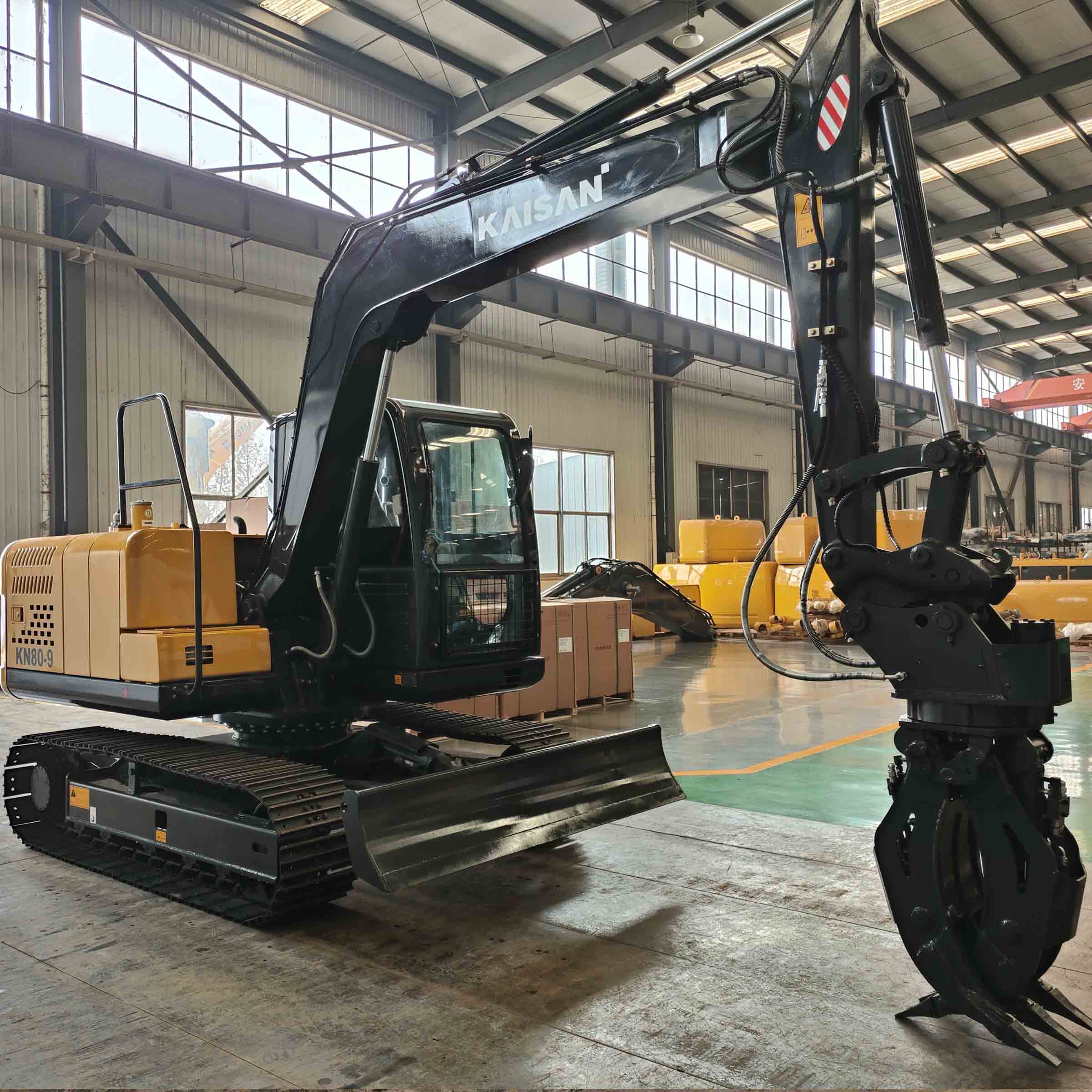

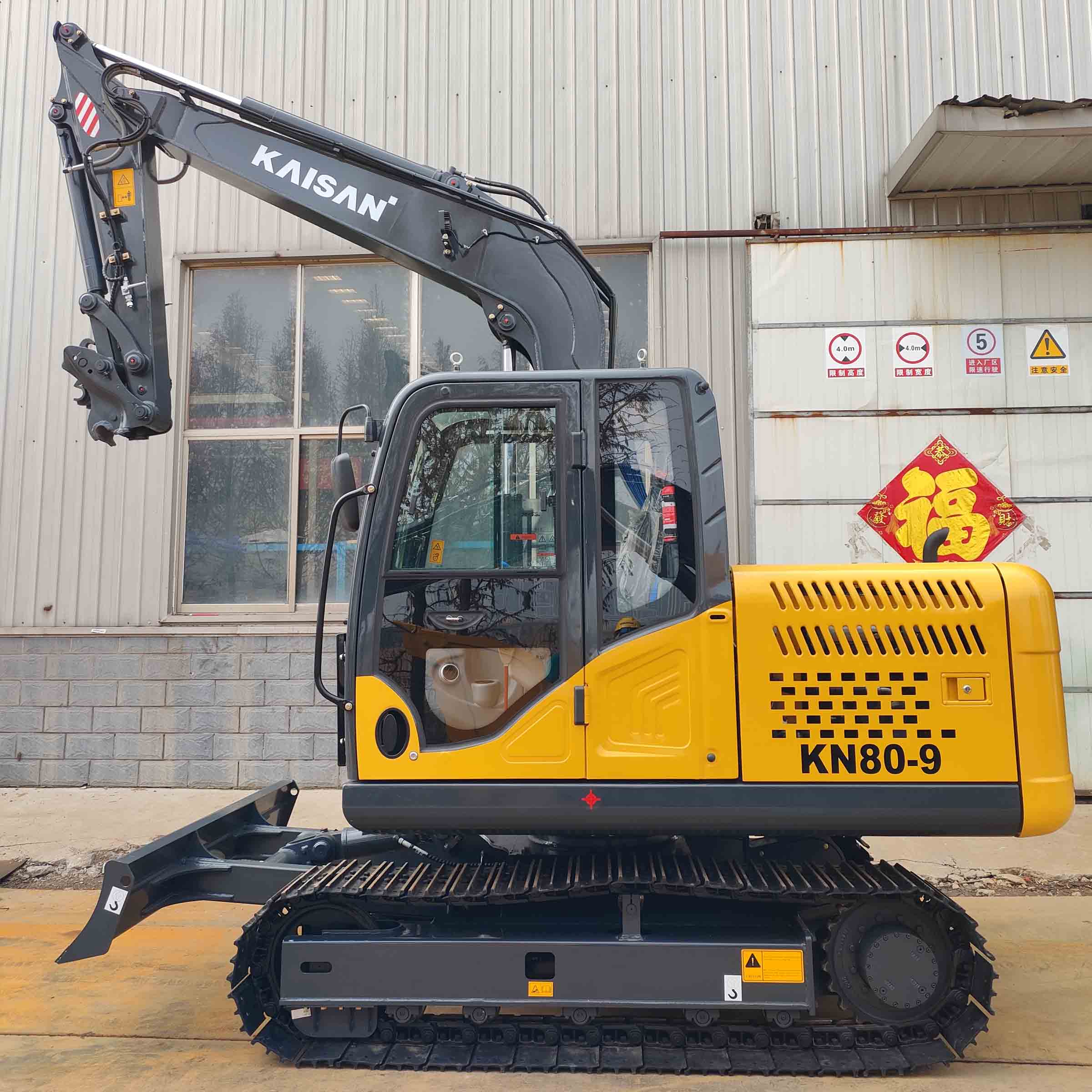

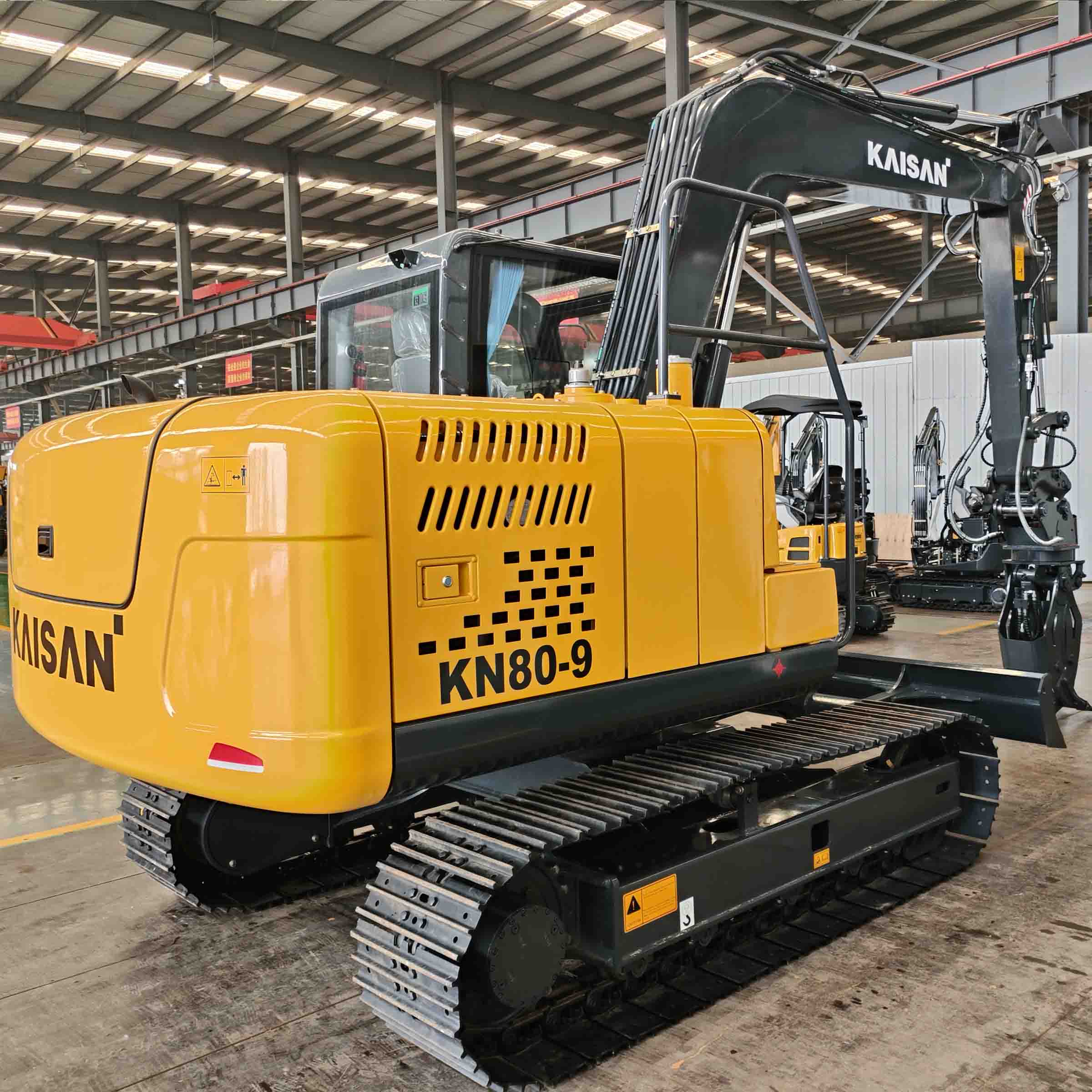

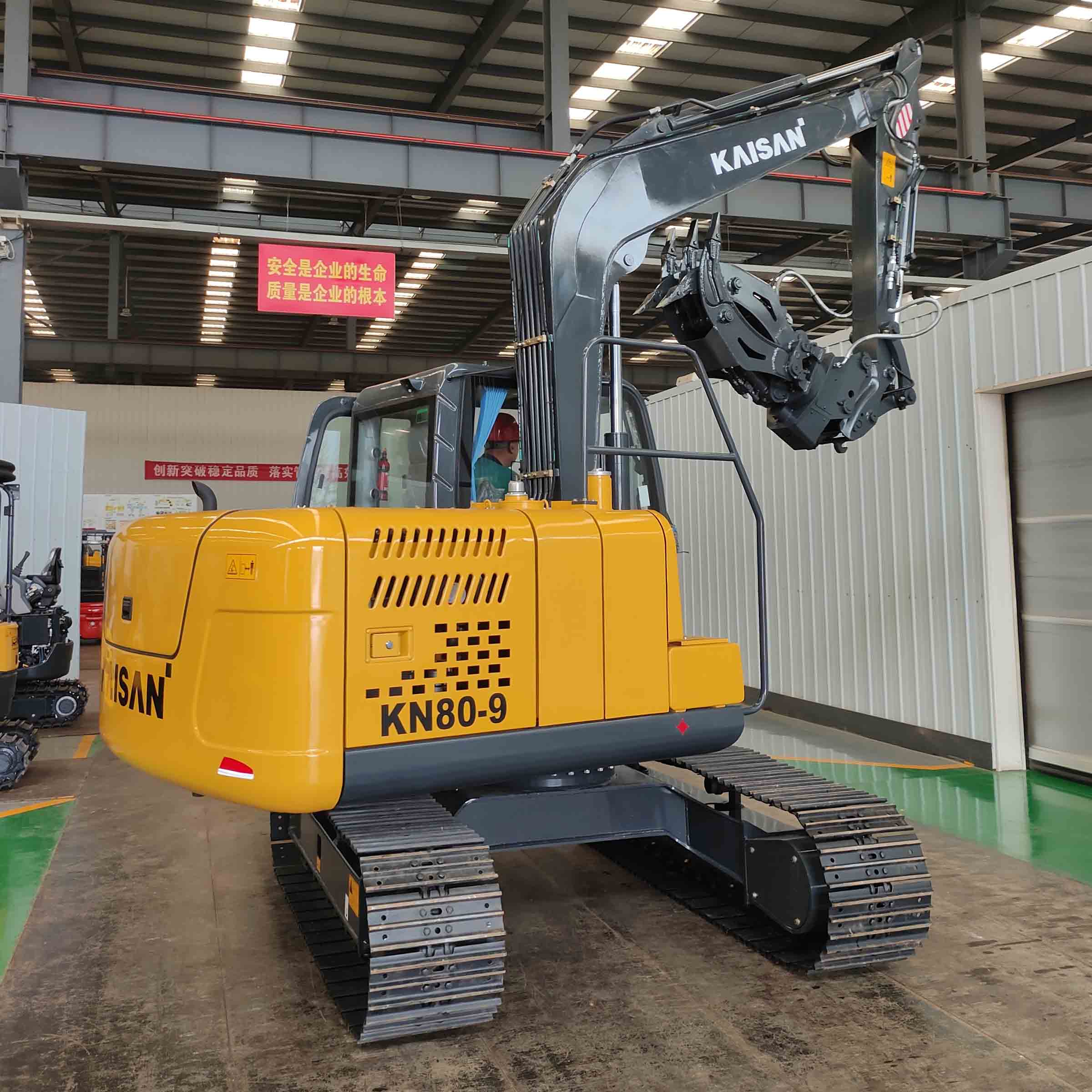

KN80-9 ：Reliable Chinese Engineering
The KN80-9 8-ton crawler excavator from Shandong KAISAN MachinZery Co., Ltd. delivers powerful performance and operational efficiency through sophisticated engineering. It features an imported 54.3 kW YANMAR (4TNV98T) engine running at 2200 rpm, ensuring strong output and reliability.An advanced German INLINE hydraulic system enables precise and stable movement, supported by exceptional digging force for high productivity. With a digging depth exceeding 4 meters and a working radius of nearly 6.2 meters, this model adapts to a wide range of applications.Designed for operator comfort and mechanical durability, the KN80-9 comes equipped with a factory-installed air conditioning system and incorporates internationally sourced, high-quality components for extended service life in demanding conditions.
![8Ton New Household Precision Customizable Excavator]( "8Ton New Household Precision Customizable Excavator")
Model | KN80-9 |
Manufacturer | SHANDONG KAISAN MACHINERY CO.,LTD |
Brand | KAISAN |
Operating Weight | 8500kg |
Overall dimension | 6100x2300x2680mm |
Bucket capacity | 0.34cbm |
Engine |
Engine type | YANMAR(4TNV98T) |
Rated power/speed | 54.3kw/2200rpm |
Voltage of start motor | 12V |
Starting type | ELECTRIC |
Hydraulic system |
Hydraulic main pump | Germany INLINE |
Hydraulic system pressure | 24.5MPa |
Hydraulic system flow | 165L/Min |
Pilot pump | Germany INLINE |
Pilot pump max flow | 9L/Min |
Valve | Germany INLINE |
Swing motor | Germany INLINE |
Max swing speed | 10r/min |
Travel motor | EDDIE |
Max travel speed | 5.1km/h |
Sealing parts | USA PARKER |
Gear | high 5.17km/h, low 2.7/km/h |
Bucket dimension(length*width*depth) | 760*660*460 |
No. of teeth | 5 |
Bucket Digging Force | 52Kn |
Arm Digging Force | 64Kn |
Grade ability | 70 Degree |
Tanks |
Working fuel consumption | 6.58L/h |
Fuel tank capacity | 130L |
Engine oil tank capacity | 11L |
Hydraulic oil tank capacity | 90L |
Cooling fluid tank capacity | 20L |
Overall size |
Shipping Length | 6100mm |
Shipping Height | 2680mm |
Shipping Width | 2300mm |
Boom length | 3710mm |
Arm length | 1650mm |
Radius,Swing Center to Rear End | 1755mm |
Count weight height | 1685mm |
Count weight ground clearance | 760mm |
Ground clearance | 380mm |
Blade height | 360mm |
Track length on the ground | 2150mm |
Length of two tracks | 1700mm |
Track shoe width | 450mm |
Operating range |
Max Digging Height | 7165mm |
Max Dumping Height | 5065mm |
Max Digging Depth | 4035mm |
Max Digging Radius | 6180mm |
Standard machine with A/C | AC |
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
More Products
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
KAISAN company applies profound engineering expertise to ensure every machinery line is manufactured to superior standards. Our commitment to safety and dependability has positioned us as a frontrunner in the sector. Advanced automated manufacturing enhances structural weld integrity by 40%. With an annual output of 800 CE Stage V/Euro V certified units, we guarantee swift worldwide delivery to our clients.
![8Ton New Household Precision Customizable Excavator]( "8Ton New Household Precision Customizable Excavator")
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
![8Ton New Household Precision Customizable Excavator]( "8Ton New Household Precision Customizable Excavator")
Extended Warranty
Comprehensive coverage for major components including engine and hydraulic systems.
Scheduled Maintenance
Customized service plans based on operating hours with genuine parts replacement.
Remote Diagnostics
Real-time technical support and troubleshooting through digital platforms.
On-Site Support
Mobile service teams available for major repairs and emergency maintenance.
Operator Training
Professional programs covering operation techniques and maintenance basics.
Performance Optimization
Regular system calibration to maintain peak efficiency and fuel economy.
Service Agreements
Flexible long-term contracts with priority support for fleet customers.
![8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct]( "8.5 Ton Crawler Excavator Equipped Wood Clamp Factory Direct")
Q: What engine powers the 8-ton model?
A:It features a 54.3kW Yanmar 4TNV98T diesel engine, known for reliable power and fuel efficiency.
Q: What are its key digging capabilities?
A: It achieves a digging depth of 4,035 mm and reach of 6,180 mm, handling diverse tasks efficiently.
Q: Is it suitable for confined spaces?
A:Its compact design and low ground pressure allow easy operation in tight urban sites.
Q: What comfort features are included?
A: The ergonomic cab comes standard with air conditioning and reduced-noise operation.
Q: What certifications does it hold?
A: All units comply with CE Stage V emission standards for global operation.
